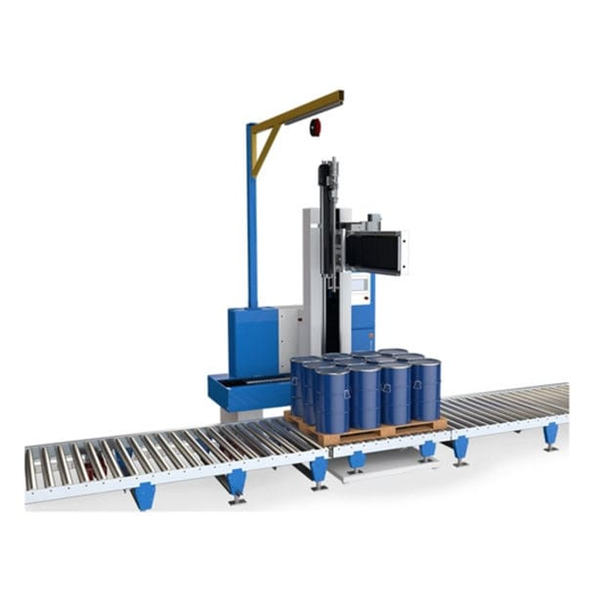

200L Steel Drum Motor Bicycle Oil Filling Machine Manufacturer

Description of motor bicycle oil filling machine:

Working process:


@The operator places the drum on the filler
@The operator aligns the nozzle to the drum
@The operator presses the button of " filling orientation" at first, then presses the button of "start filling", filling nozzles lowing down,start filling automatically
@When it comes to the weight set, automatically stops filling and nozzle out of the drum
@The operator push out the drum

Features :


@Machine adopts three steps filling,fast filling,slow dow filling,then precision filling.
@Material contacted parts:sus316 and with sus304 for other parts
@Rolling conveyor material:stainless steel
@Vacuum withdrawn system,ensure the high filling precision,and no drops
@can achieve net weight and gross weight filling according to clients' requirement
@AIRTAC pneumatic+SIEMENS PLC
@Toledo Weight instruments and tracer

Oil Drum Liquid Filling Machine 's available options
@explosive proof system to meets the requirements of hazardous
@drum caper and closer

Suitable materialLiquid like coating, printing ink, paint, asphalt, glue, lubricant,petrochemical,

fineness chemical etc

Weighing formFilling above level (liquid without foam)

Filling under level (liquid with foam)

Filling capacity30kg60kg200kg
Accuracy≤ 0.1%0.2%≤ 0.1%
Filling speed180-240 barrels/hour120-180 barrels/hour45-60 barrels/hour
Barrel formDrum, pail, can etc.
Gas power0.5MPa
Work environmentTemperature :-20℃~45℃relative humidity:95%(none dew)
voltageAC220V  50Hz
Max power1KW
Filling mouth materialSUS304/SUS316
Platform size(mm)350x350350x350700x700
OptionStainless steel 304 conveyor roller

Quick Details


Type: Filling Machine
Condition: New
Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type: Barrel, Cans, drum
Packaging Material: Glass, Metal
Automatic Grade: Semi-Automatic
Driven Type: Electric
Voltage:220V
Power: 0.7
Place of Origin:Shanghai, China (Mainland)
Brand Name: NPACK
Dimension(L*W*H):1600*1500*2000mm
Weight:500KG
Certification:CE
After-sales Service Provided: Engineers available to service machinery overseas
Name: motor bicycle oil filling machine
Machine material: S/S 304/Carbon steel
Filling speed: 50 barrels/hr
Applicant to: liquids
Capacity:30~300kg
Container:drum/pail/can/bottle
Filling method:over level/under level(with foam or not)
Conveyor: optional
ATEX: optional
Warranty: One Year
