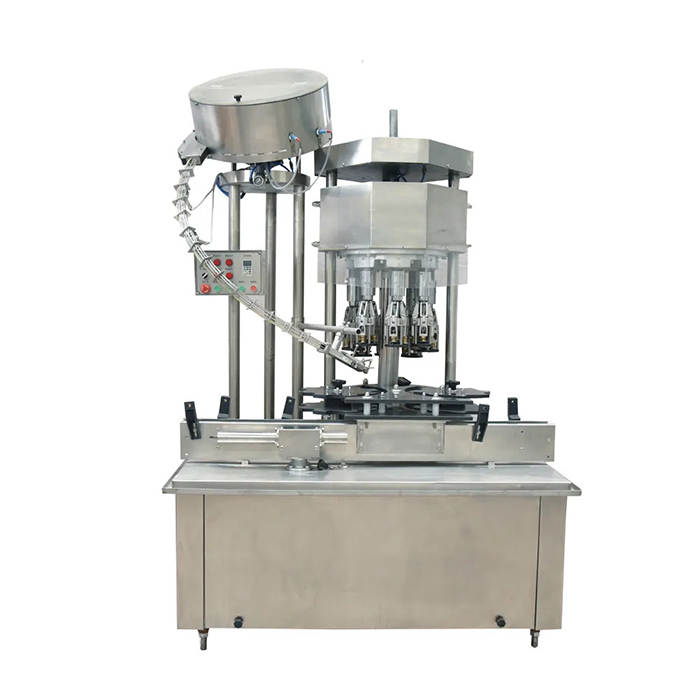

Automatic Multi Head ROPP Cap Capping Machine

This automatic sealing capping machine is mainly used for disposable aluminum caps of pilfer proof, and the advantages are as below:

1. Tight seal: there is no slot,no scratch on the sealing.

2. Large scope of application: The sealing head adopts four claw(knife) balanced type,and put a even force when sealing, first make the cap deformation according to the bottle mouth shape, and then pushing thread and flanging.

3. Small damage rate: positioning devices of the bottle mouth ensures the bottle mouth is positioned to the sealing head accurately,to increase the utilization rate of caps.

4. High automation:this machine is equipped with automatic cap arranging and cap hanging device, and can be equipped with cap loading device.

5. Long Life: the sealing head is made from

Make you know:

Automatic Multi Head ROPP Cap Capping Machine/bottle cap sealing machine is mainly available to fill eye-drop.E-liquid into various round and flat plastic and glass bottles with the range from2- 30ml.this e-liquid filling machine with e liquid sealing machine.

Automatic Multi Head ROPP Cap Capping Machine/bottle cap sealing machine provides a regular plate to

position, cork and cap;accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping.

Automatic Multi Head ROPP Cap Capping Machine/bottle cap sealing machine is ceramic pump. It is easy to clean. It is able to wear and tear. There is no O-ring and seal gasket in the pump, so there is no impurity, and do not pollute the liquid. Besides, the filling precision of this pump is high.

Automatic Multi Head ROPP Cap Capping Machine/bottle cap sealing machine use the transverse torque and automatic slipping unit. So it does not hurt the cover. The bottles don’t follow with the capping head, the turntable does not hurt the bottle, so the design protects the beautiful of the packaging material. The machine is controlled by touch screen and made with alarm.

Characteristic


1, Man-machine dialogue system setting, visual convenient operation ,accurate filling level.

2, the mainframe running speed is stopless frequency conversion.

3, the product quantity can be controlled.

4, Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).

5, Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

Quick Details


Type: Capping Machine, Capping Machine
Application: Beverage, Chemical, Commodity, Medical
Driven Type: Electric
Automatic Grade: Automatic
Voltage: 380V 60HZ
Power: 2kw
Packaging Type: Bottles
Packaging Material: Wood
Place of Origin: Shanghai, China (Mainland)
Brand Name: NPACK
Model Number: NPACK-30
Dimension(L*W*H): 1800*1000*1500mm
Weight: 550KG
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
function: E-liquid bottle filling,insert plug,capping
suitable product: E-liquid/eye drop/bottle/cap
E-liquid filling range: 2-30ml .
Production capacity: 30-50bottles/min
capping heads: single head
Qualified rate: ≥99%
fillinng heads: single head
Control system: PLC
