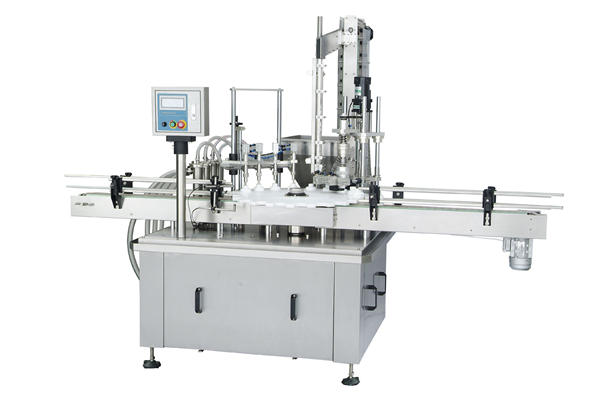

AutomaticRotary Piston Filling Machine

1.This rotary quantitative filling machine, high automation, large production capacity. Stroke of the piston cylinders are controlled by PLC. Whole filling process is the perfect combination of mechanism, electricity, photics and pneumatics,which performance reaches the international advanced technology .

2.Adopts advanced mechanical and electrical integration technology.Any filling specification can easily be changed by modifying parameters in touch screen. Not only the filling volume of 20 filling heads can be changed substantially, but also each filling head can be changed finely. The computer memory can save related parameter of each kind of package specification which save time for the next adjustment.

3.During the machine running cycle, each part of mechanical drive is protected by mechanical and electrical integration. Any abnormity during running, the machine will stop automatically and alarm and touch screen shows where the problem is.

4. Thanks to the function of watertight and pneumatic protection, it is environment-friendly equipment.

Technical parameter


No.Items Performance
01Machine dimension (L×W×H)2400mm*2200mm * 2200mm
02No. of filling head20
03Suitable bottle size
Diameterφ40mm~φ120mm
Height80mm~280mm
04Filling range50ml~1000ml
05Production capacity≤12,000 bottles / hour (tested by water)
06Tolerance of filling
50ml ~ 200ml±1%
200ml~ 500ml±0.5%
500ml ~ 1000ml±0.3%
07Voltage380V; 50Hz
08Power4.5 Kw
09Air consumption0.4 - 0.65 Mpa clean and stable compressed air

Quick Details


Type: Filling Machine
Condition: New
Application: Beverage, Chemical, Food, Medical
Packaging Type: Case
Packaging Material: Wood
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380V/50Hz
Power: 4.5 kw
Place of Origin: shanghai, China (Mainland)
Brand Name: Npack
Dimension(L*W*H): 2400mm*2200mm * 2200mm
Weight: 900kg
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
Material: SS304
PLC: Panasonic
touch screen: Panasonic
