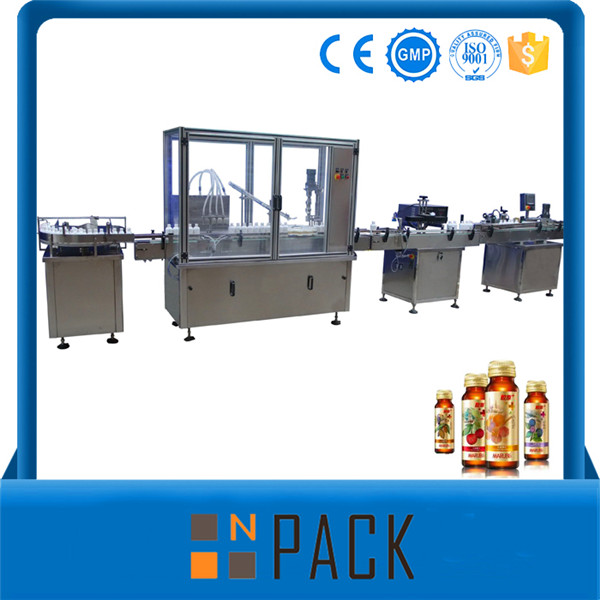

China Supplier Automatic Honey Bottle Liquid Filling Machine

Specifications
China Supplier Automatic Honey Bottle Liquid Filling Machine
High Accuracy
PLC

China Supplier Automatic Honey Bottle Liquid Filling Machine 's introduction

This filling Machine is widely used in packaging pipeline for medicine, foods, pesticides, and chemical industry and so on. it adopts Frequency cotrolled drive, and transportation exit is adjustable. so it could meet different packaging machinery pipeline request.

This filling Machine use PLC programmable control, with 5.7 inches touch-screen human-machine interface system, and use piston controlling filling material flow to met the request of kinds of measurement filling. Structure compact, used for both big and small bottle and changeable bottle. we adjust the machine instead of replacement parts when we change bottle condition. this machine adopts mainly machinery linear motion way for design.

It aim at auto-controlled by means of PLC programmable controller, kinds of induction device and air vat release, and completely meet GMP standard, simply operated. It could change different container for filling during short time so that it could reach several use with one machine.

Our Normal models

---

Speed for 1L

ZXG-4(four head) 12-16bottles/min

ZXG-6(six head) 18-24bottles/min

ZXG-8(eight heads) 24-32bottles/min

ZXG-10(ten heads) 30-40bottles/min

ZXG-12(twelve heads) 36-48bottles/min

technical parameters

---

Filling Scope	250g-4000g
Filling Speed
Measure Precision	<=+/-1%
Power	500W
Voltage	380V 50HZ
Air Pressure	0.5Mpa
Net Weight	300kgs

Electric configure: PLC(MITSUBISHI), TRANSDUCER(MITSUBISHI OR PANASONIC) ,SNESOR(SICK), Time Relay(Omron), Button and contactor(SCHNEIDER). Air Button(MERLINGERIN), touch screen (HITECH)

China Supplier Automatic Honey Bottle Liquid Filling Machine 's working process

It adopts piston filling,reliability,while the material have been sucked into the cylinder,they would be pushed out through the nozzles,and the amount of the material which are filled into desired container is same with the material which are in the cylinder.

China Supplier Automatic Honey Bottle Liquid Filling Machine 's delivey term

1.Before delivery,machine must be tested and photoed(with or without the packaging),also video

2.After photo and video sent,the balance payment will be asked to pay,our factory will delivery machine on the seconds of full payment arrived to our account.

3.Buyer are warmly welcome to inspect the manufacturing of machine.

China Supplier Automatic Honey Bottle Liquid Filling Machine 's technical support

1.sales person online service from 8:00 am to 10:00 pm

2.engineer can be arranged for readjusting and installing at the buyer's factoroy,but relative fees should be born by the buyer

China Supplier Automatic Honey Bottle Liquid Filling Machine 's cooperation brand

Schneider,Siemens,Mitsubishi,AirTAC,SICK,Omron,Weinview etc.



Quick Details

---

Type: Filling Machine
Condition: New
Application: Food, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Type: Cans, Bottles
Packaging Material: Plastic, Metal, Glass
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220/380V
Power: 1KW
Place of Origin: Shanghai, China (Mainland)
Brand Name: NPACK
Dimension(L*W*H): 1920*1000*1600 mm
Weight: 350 kg
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
Filling Volume: 3-70ml 10-120ml 25-250ml 50-500ml 0.1-1L 0.2-2L 0.4-4L 0.5-5L
Filling Precision: +/- 1%
Filling Capacity: 10-80 Bottle/Min
Filling Valve Head: Multiple Head
Quality: Garanteed
Price: Competitive
Performance: Excellent
Service: Life Long
Structure: Linear

---
