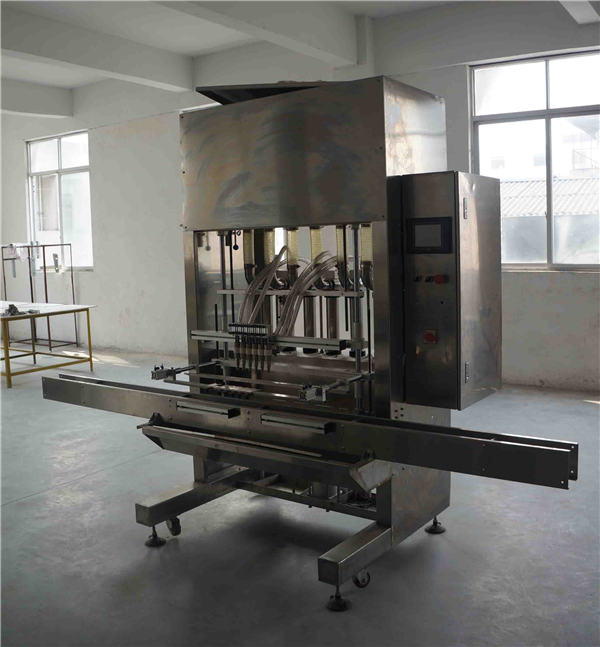

Essential Oil Bottle Filling Machine

Functional features

Constant feeding system, dive down optoelectronics, mechanical limit dual protection are the advanced features. It is very safe as the functional area is completely isolated; no bins designed makes cleaning and maintenance easier and also ensures no residual. Quick structural adjustment improves productivity.

1.Adopts Americal METTLER TOLEDO weighing sensor and control meter, ensures that the filling precision of of measurement. Weighing sensor adopt unique ball-to-go drum conveying method, ensure smooth drum-out conveying after filling.

2.Adopt fast and slow speed valve that ensuring filling accuracy and has no effect to speed. It has the dive function , driven by motor, can eliminates the splash and foam. This filling machine can do the auto filling of different materials (with or without foam).

3.Under the filling nozzle is the movable dip collecting cup. After filling, the cup collect the residuel dip to prevent bottle mouth polluting.

4.Weighing control cabinet is of standard RS-483 interface, The system is of number control, adjustment and seeting all can be implemented in touch screen. Gross weight or net weight filling all could be set so the actual filling amount instantly show in touch screen. It is very convinient and intuitive.

5.Empty drum detection, no drum no filling; Anti-collision bottle design, it will auto-reset when bottle orientation or position is not in right place.

6.Individual electric cabinet is of whole seal design, reasonable layout, and convenient overhaul. Main part(PLC, HMI, frequency convertor, and power switch, etc) are all France Schneider’s and other famous brand components, which ensures stable running of the equippment.

7.Material touch part is of SUS304 stainless steel. Filling scale and the sealing of the material touch part are TEFLON.

Technology Parameter

Quick Details

Type: Filling Machine
Condition: New
Application: Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type: Barrel, Bottles, Cans
Packaging Material: Glass, Metal, Plastic
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380V/50hz
Power: 1.5KW
Place of Origin: Shanghai, China (Mainland)
Brand Name: NPACK
Dimension(L*W*H): 3000mmx1565mmx2380mm
Weight: 1600kg
Certification: CE GMP ISO
After-sales Service Provided: Engineers available to service machinery overseas
Filling Capacity: ≤Bottles/hour (5L water as example)
Filling Range: 5-30L
Filling Precision: ±0.2%
Applicable Bottle Range MIN: 140x200x320mm
Applicable Bottle Range MAX: 260x290x500mm
Air Pressure: 0.6-0.8 MPA
PLC/Touch screen/Inverter: Schneider
Cylinder/Solenoid valve: FTEC
Material: 316L+304 Stainless steel
Keywords: Automatic high viscosity drum filling machine
