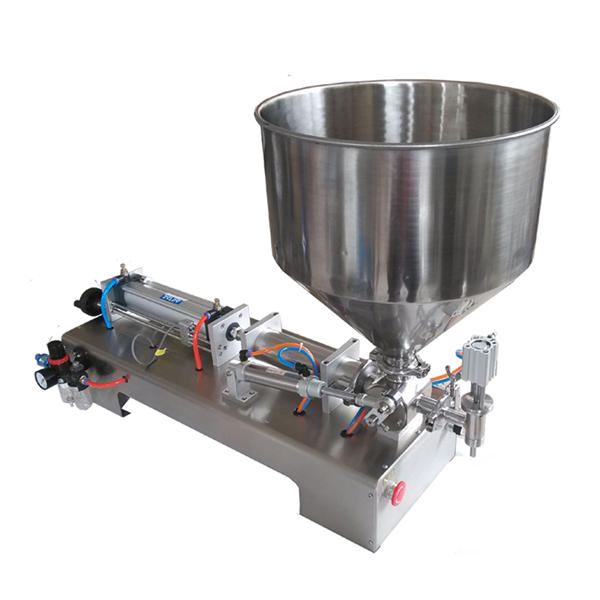

High Efficiency Manual Honey Filling Machine

Home / Filling Machines / High Efficiency Manual Honey Filling Machine

High Efficiency Manual Honey Filling Machine

Specifications
high efficiency manual honey filling machine
easy operation
high accuracy
filling speed and volume adjustable
316L steel

Application


Suitable for foods, daily chemicals, agrochemicals, medicine and other special chemicals. It is an ideal device for high viscousity fluid and paste filling.

Working Principle


The machine works on the three-way principle to adjust the filling quantity that a cylinder drives a piston and a rolling valve to draw out and output the high-thickness fluid, and then the magnetic switch controls the journey of the piston.

The machine has a simple and reasonable structure, high filling accuracy.

high efficiency manual honey filling machine

Feasures


Using pneumatic control , this machine owns a wide application scope, simple measuring regulation, good shape and convenient cleaning, also suitable for the explosion-proof unit.

1.Reasonable design, compact shape with easy oparetion.

2.The machine adopts AirTac pneumatic components and parts contacting the material all made of 316L stainless steel, meeting the GMP requirements and food grade.

3.According to your specific requirements, filling volume, filling and speed can be adjustable. Filling accuracy is ±0.8% .

4. Anti-drip, Anti-drawing system and lifting filling device are used in filling valve.

Quick Details


Type: Filling Machine
Condition: New
Application: Food, Commodity, Medical, agrochemical and special industry
Packaging Type: ALL
Packaging Material: Plastic, Metal, Glass
Automatic Grade: Semi-Automatic
Driven Type: Pneumatic
Voltage: DC24V
Power: 10W
Place of Origin: Shanghai, China (Mainland)
Brand Name: NPACK
Dimension(L*W*H): 500*150*300mm
Weight: 46kg
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
Filling volume: 3ml--5l
Cylinder size: depend on filling volume
Filling speed: 1-30bottles/min
Filling accuracy: ±0.8%
Metering type: piston pump
Price: competitive
Service: excellent
Product: qualified
Maintenance: law
After-sales service: life long
