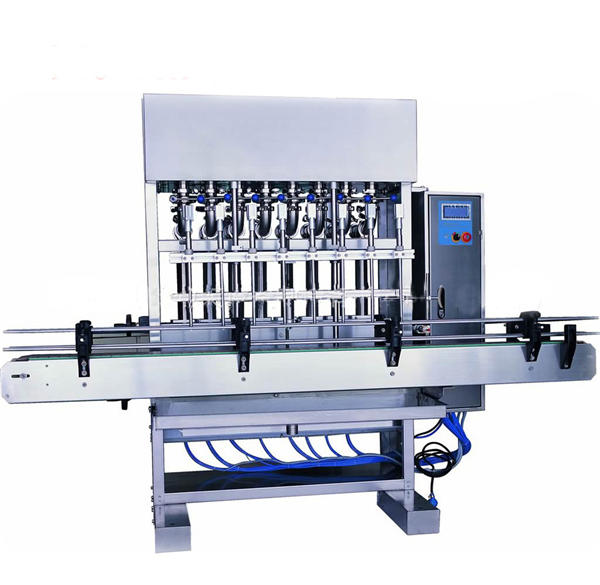

Stainless Steel Liquid Soap Filling Machine

Home / Filling Machines / Stainless Steel Liquid Soap Filling Machine

Stainless Steel Liquid Soap Filling Machine

This machine are widely used for food,cosmetic,medicine,cream,pesticide,chemical industry etc.It adopts imported equipment of germany festo cylinder,Siemens PLC touch screen computer etc and ensure the quality.

Technical Parameters


Filling nozzles4 nozzles ( can be customized)
Filling methodself-suction, dive to fill
Filling volume25-250ML 50-500ML 100-1000ML 500-2500ML
Filling speedAdjustable according to different products.
Filling accuracywithin ±1%
Voltage/ Air pressure220V 50-60HZ,  0.5-0.7MPA
OperationPLC touch screen control (SIEMENS)

Features


The series filling machine is a kind of PLC controlled high-tech filling machine with photoelectric sensing and pneumatic actuating researched and developed by our company.

♦ It can be suitable for water injection,fluids,detergent products of different viscosity.

♦ Widely used in food,medicine,grease,pesticide,chemical and cosmetic industries.

♦ The machine can be coveniently maintained. It can realize accurate metering and make sure no filling is made in case of no bottle or bottle shortage.

♦ It is designed with submersible filling function,featured by accurate measurement and no bubble and dropping during the filling.

♦ Adopts electric components of world-famous brands. The main power cylinder adopts FESTO Germany dual-action cylinder and magnetic switch, Omron photoelectric and Germany SIEMENS PLC touch screen are equipped to ensure its excellent quality and stable performance.

Quick Details


Type:Filling Machine

Condition:New

Application:Chemical, Food, Medical, cosmetic,cream,pesticide

Packaging Type:wooden case

Packaging Material:Plastic, Wood

Automatic Grade:Automatic

Driven Type:Pneumatic

Voltage:220V

Power:5KW

Place of Origin:Shanghai, China (Mainland)

Brand Name:NPACK

Dimension(L*W*H):2000* 810* 2200mm

Weight:500kg

Certification:CE, ISO 9001

After-sales Service Provided:Engineers available to service machinery overseas

Fuction:filling

Marterial:stainless steel

Experience:over 10 years

nozzles:can be customized

control type:PLC program control

photoelectric switch:no bottle no filling
