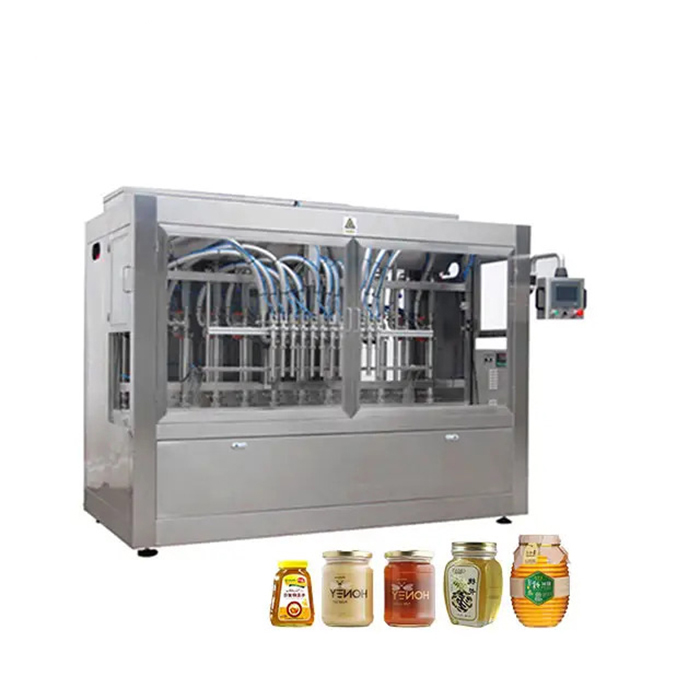

Automatic Glass Jar Honey Filling Capping Machine

Home / Capping Machines / Automatic Capping Machine / Automatic Glass Jar Honey Filling Capping Machine

Automatic Glass Jar Honey Filling Capping Machine

Product Description


Automatic Glass Jar Honey Filling Machine Features:
Specifications
Glass Jar Honey Filling Capping Machine
1. Used for viscosity liquid
2. PLC and touch screen control
3.304 stainless steel

The NPACK series Automatic Honey filling machine was design and manufactured by Zhangjiagang mars packing machinery co., ltd, especial for liquid from thin viscous to high density liquid, such as water, oil, lotion, cream, Jam, sauce, honey, ketchup and so on. It is mostly used in the industry of chemicals, foodstuff and pharmaceuticals.

There are many advantages of the machines, the spare parts are proceeding by CNC machines with imported high quality stainless steel, all the main components are imported from Japan, German, Italy and America. Full automatic and control by PLC, operate by touch screen, and easy almost no need maintaining.

Proffesional Manufacturer of honey filling machine

Honey Filling Machine Configuration and performance, features of Honey filling machine:
Filling nozzles from 2 -16 nozzles for option
Anti- drops, equipped with shut off filling nozzles
When filling, the filling nozzles will insert into the bottom of the bottles
Filling volume can be automatically adjusting by touch screen, meanwhile customer also can choose adjust by rotary handle for economy investment.
Frequency speed control, and no bottle no filling
Top liquid hopper application, and automatically warning on lack of liquid, and automatic
The honey hopper can be heated and keep temperature

Honey filling machine Technical parameters

NameHoney Filling machine
ModelNpack-4
Applied bottle range30-100ml, 100-1000ml, 900ml-5000ml
Material density0.6-1.5
Tolerance of filling quantity± £ 1%
Filling speed30b/min( 1L )
Filling valves4 filling nozzles
Power Source220V, 50HZ
Air pressure0.6Map
Air Consumption200L/min
Power output2KW

Basic Info


Model NO.: NPACK-4
Automatic Grade: Automatic
Filling Valve Head: Multi-Head
Dosing Device: Plunger
Packaging Container Lifting Structure: Chute Lifting
Packaging: Bottle
Trademark: Mars
Specification: SGS
HS Code: 84223010

Type: Volumetric Filling Machine
Material Type: Paste
Feed Cylinder Structure: Single-Room Feeding
Filling Principle: Pressure
Structure: Rotary
Packaging Material: Plastic
Transport Package: Wooden Case
Origin: Shanghai, China (Mainland)
