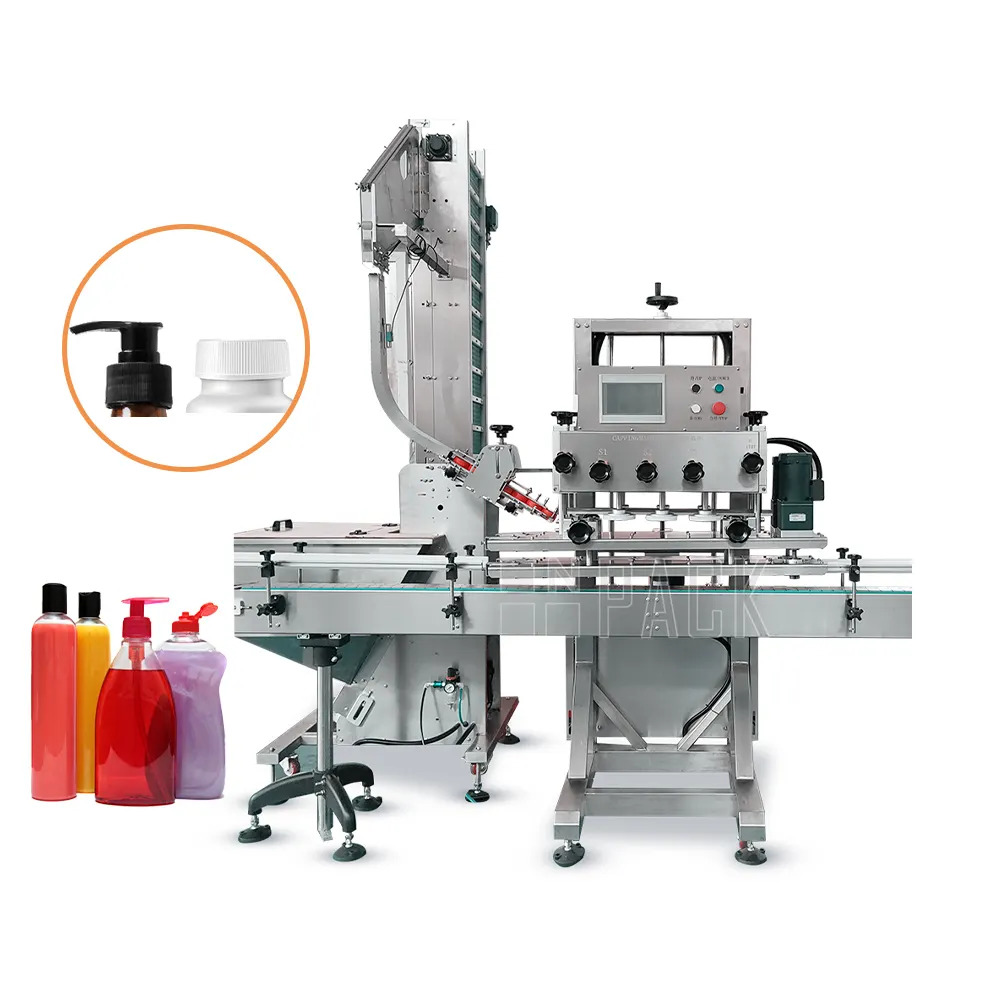

AutomaticLinear Spindle Capping Machine

Home / Capping Machines / AutomaticLinear Spindle Capping Machine

AutomaticLinear Spindle Capping Machine

Main characteristics

This capping machine perfectly used for diversified containers in different materials and shapes, such as plastic bottle, glass bottle, metal bottle, etc. caps or bottles changeovers are very quick, easy to be performed. No bottle no capping during the machine cycle. Cap sorter, conveyor, capping machine and bottle clamping belt can separately frequency conversion applicable for allowed various capping range. Meets GMP standard, protecting door may optional which guarantees more safe and environmental.

Technical parameter


No.Items Performance
01Power supplyAC220 V ;50Hz  (may customized)
02Power2.2Kw
03Production speed0~6000 bottles/hour
04Bottle diameterΦ40mm~Φ100mm
05Bottle height80-280mm
06Cap diameterΦ20mm~Φ80mm
07Cap height10-35mm
06Machine Weight650 Kg
07Machine Dimension (L×W×H)2000mm x 850mm x 2050mm

Quick Details


Type: Capping Machine
Condition: New
Application: Beverage, Chemical, Food, Medical
Driven Type: Electric
Automatic Grade: Automatic
Voltage: 220V;50Hz
Power: 2.2kw
Packaging Type: Bottles
Packaging Material: Wood
Place of Origin: Shanghai, China (Mainland)
Brand Name: NPACK
Dimension(L*W*H): 2000mm x 850mm x 2050mm
Weight: about 650 Kg
After-sales Service Provided: Engineers available to service machinery overseas
Main construction: Stainless Steel 304
Capping wheel No.: 6 sets
Cap sorter + Capping chute: Yes
