High Quality Semi-Automatic Piston Filling Machine New Design

Our semi-automatic piston filling machines are designed to fill a wide variety of liquid and semi-liquid products.The fillers can be widely used in food, chemical, pharmaceutical and other area. With different valves, they can be used to fill oils,honey, syrup, chili paste, tomato sauce, shampoo, hair conditioners, shower gers, liquid soaps, etc.

Technical Parameters


odelFilling volumeNet Wright
NPACK1-I-12P12-120ML20KG
NPACK1-I-100P50-1000ML30KG

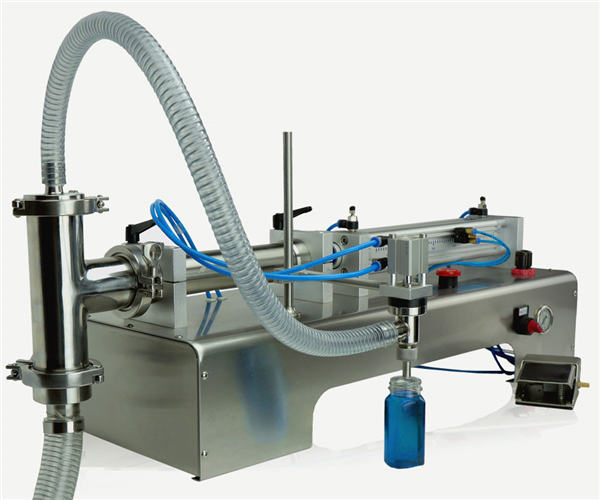

semi-automatic piston filling machine New design

Features


1. The filling volume is adjusted using screws and the counter,which provides ease of adjustment and allows the operator to read the real-time filling volume on the counter.

2. Two filling modes for you to choose--'Manual' and 'Auto'.

3. All the key parts are designed with position controls,which ensure you to assemble the parts accurately.

4. Equipment malfunction is extremely rare.

5. The series of machines are controlled by compressed air, so they are suitable in anti-explosion or moist environments.

6. All the components that come in contact with product can be fast connected, which make washing more quickly.

Options


1. Different valves can be chosen according to different products, one way check valve,rotary valve and ball valve.

2. Filling nozzles with different sizes can be chosen, including ∅4, ∅6,∅8,∅10,∅12,∅14,∅17,∅19,∅25. ∅25 is suitbale for filling products with particles or high temperature.

3. Stainless steel hopper of 30L and 50L.And hopper can with heating system and agitator.

4. The product cylinder can be changer to smaller one. Which can make this machine to be two machines. The smaller product cylinder can fill from 5ml to150ml.

Quick Details


Type: Filling Machine
Condition: New
Application: Beverage, Chemical, Food, Medical
Packaging Type: Bags, Barrel, Bottles, Cans, Pouch, Stand-up Pouch, bottles or jars
Packaging Material: Wood
Automatic Grade: Semi-Automatic
Driven Type: Pneumatic
Voltage: 220V
Power: 0KW
Place of Origin: Shanghai, China (Mainland)
Brand Name: NPACK
Dimension(L*W*H): 1400*300*480mm
Weight: 11kg-75kg
Certification: ISO 9001
After-sales Service Provided: Engineers available to service machinery overseas
Name: High quality semi-automatic piston filling machine New design
Quality Management System: ISO9001:2008
On-site Management System: 5S
Material: 316L+304 Stainless Steel
Capacity: 15-35bpm
Model: Nor-SVFA
Product: shampoo, hair care product, skin care product,food,oil...
Usage: bottle filling
Warranty: 1 Year
Bottle type: PET and Glass Bottle and bags
