This machine is high technical equipment which successfully developed and designed by introducing into advanced overseas technology and integrating GMP requirement, with features of fair structure, full function, easy operation, accurate filling, stable running, as well as low noise. It adopt with PLC controller, automatically operating from liquid or high velocity material filling till batch number printing (include manufacture date), it's an ideal equipment for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, pharmacy, foodstuff, adhesives etc industries, comply with the standard of GMP.
1. High grade operation screen with LCD display PLC and buttons, easy operation and more humanization By steplees speed adjust, parameter set, out put count, pressure index and failure display.
2. Automatically executing tube supply, photoelectron register, inert gas filling(optional), material filling and sealing, batch number printing, final products output.
3. High precision photoelectron register reduced the chromatic aberration scope.
4. Adjustment parts external in position, position digital display, convenient and accurate adjust (suitable for variety products producing).
5. Mechanical, photoelectron, electric, pneumatic integrative controlling, reaches no tube no filling function; Waiting if tube error position or pressure too low, automatic stop machine if open the protective door.
|Model||GF-400 A||GF-400 B|
|Tube material||Metal tube, ALU tube||Plastic tube, Compound tube|
|Tube diameter||10-42 mm||10-60 mm|
|Speed||3-10 r/min||2.5-7 r/min|
|Product capacity||30-60 Pc/min||30-60 Pc/min|
|Motor Power||2kw(380V/ 220V 50Hz)||2kw(380V/ 220V 50Hz)|
|Heat sealing power||3KW||3KW|
|Overall dimension||2620×1020×1980 mm||2620×1020×1980 mm|
|Machine weight||1100 kg||1100 kg|
Forming Species: Bottle Forming
Driven Type: Electric
Packaging: Soft Tube
Motor Power: 2kw(380V/ 220V 50Hz)
Overall Dimension: 2620×1020×1980mm
Automatic Grade: Automatic
Type: Filling and Sealing Machine
Forming Function: Filling
Material Type: Paste
Product Capacity: 30-60 PC/Min
Heat Sealing Power: 3kw
Machine Weight: 1100kg

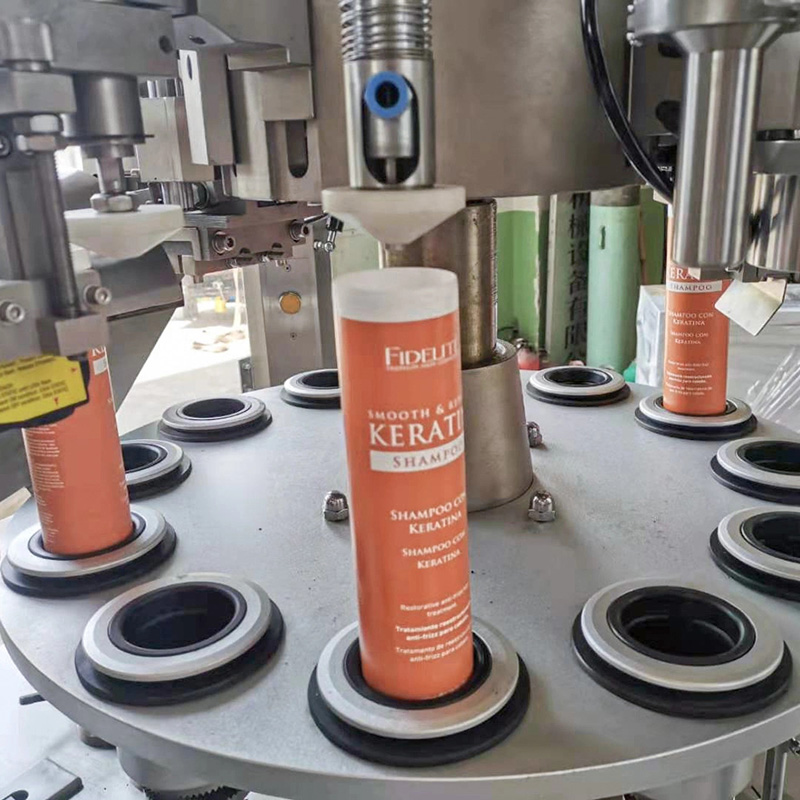

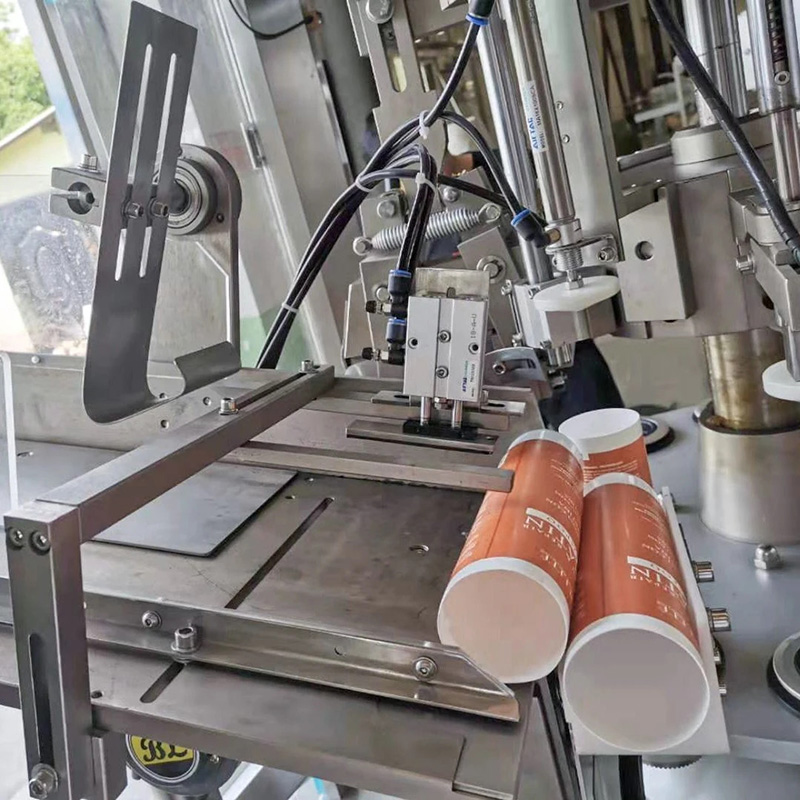

A cream tube filling packing machine is a type of packaging machinery designed for filling and packaging various types of creams, gels, pastes, and other similar products into tubes. This type of machine typically consists of several components, including a tube feeder, filling unit, sealing unit, and cutting unit. The overall production process is automated, which ensures the accuracy and consistency of the fill, as well as the speed of production.
The specific features and specifications of a cream tube filling packing machine may vary depending on the manufacturer and the intended application, but some common features include:
High precision: The filling system is designed to be accurate, with the ability to fill the exact amount of product specified, with minimal waste.
Versatility: The machine can be used for filling and packaging a wide range of products, including creams, gels, pastes, and other similar products.
Hygiene: The machine is designed to meet hygiene standards, with components made from food-grade stainless steel and other non-corrosive materials. The filling system is also designed to prevent contamination, ensuring the safety and quality of the product.
Easy to operate: The machine is typically user-friendly, with intuitive controls and easy to follow instructions. The system is also designed to be easy to maintain, with minimal downtime required for cleaning and servicing.
High production rates: A cream tube filling packing machine is designed to work at high production rates, with the capability of filling and packaging hundreds or even thousands of tubes per hour.
Overall, a cream tube filling packing machine is an efficient and reliable solution for filling and packaging various types of creams and gels into tubes. It is a popular choice for manufacturers who need to package products for retail or commercial use, with the ability to meet high standards of accuracy, consistency, and hygiene.
