Automatic Ultrasonic Plastic Tube Filling Sealing Machine

Home / Filling Machines / Automatic Ultrasonic Plastic Tube Filling Sealing Machine

Automatic Ultrasonic Plastic Tube Filling Sealing Machineottle

Specifications


1automatic ultrasonic plastic tube filling sealing machine
2 Working stabely
3 PLC+Touch Screen

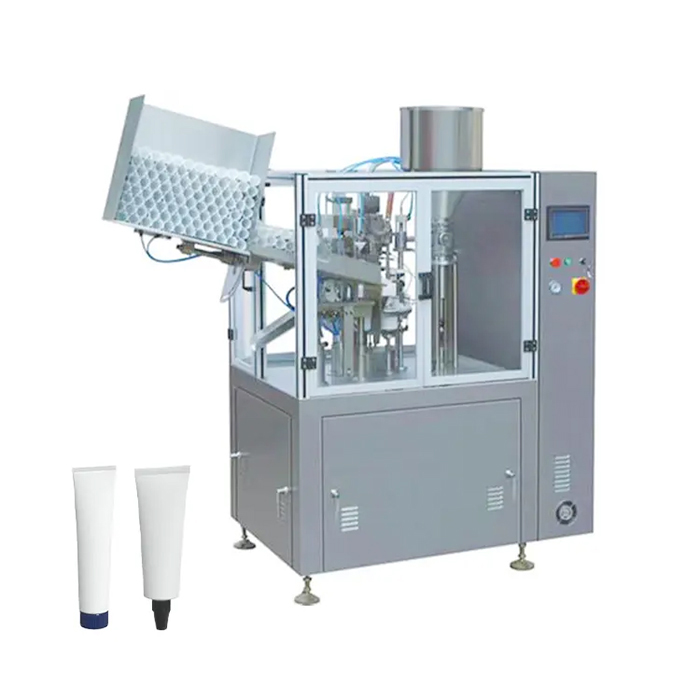

NP.F-50 automatic ultrasonic plastic tube filling sealing machine

Soft Tube Filling and Sealing Machine is suitable for filling all kinds of pasty and viscous fluid.

Tube Filling and Sealing Machine is suitable for filling all kinds of pasty and viscous fluid and the materials alike, into plastic and composite metal tubes and then internally heating tubes, sealing and printing lot number.

It is used in the industries of pharmaceutics, foodstuffs, cosmetic and daily chemicals . With Taiwan's EVIEW touch screen and Taida's PLC control system employed, convenient, visualized and reliable non-touch operation of the machine is effected compact design and auto tube feed. Driving part fully-closed.

Tube feeding, marking identification, filling, hot air sealing, code printing, trimming and ejecting out the tube conducted by automatic systerm.

Tube feeding is conducted pneumatically, accuratly and reliably. Auto picketage effected by photoelectric inductance. Easy adjustment and dismantling .

Intelligent temp.control and cooling system makes operation easy and sealing reliable. With easy and quick adjustment, it is suitable for using multiple kinds of soft tubes for filling.

The part contacting materials is made of 316L stainless steel, clean, sanitary and conforming to CMP . With safety device, the machine is shut down when the door is opened. and filling carried out only with tubes fed.

Performance and characteristic:


1. The part contact direct with ointment adopts 304L or 316L stainless steel. It use materials that is non-poisonous, no reaction with drug, non-corroding, no absorption from drug.

2. Inner workshop should smears anti rust coat that withstand weak acid and weak base besides adopts austenite stainless steel. The parts with chemical treatment should have no rusteaten and no exfoliation.

3. External surface should adopts austenite stainless steel wiredrawing board or sub-light treatment.

4. Semi--closed outline board visible window adopts bright, staticfree material as closed retaining band.

Capability and features:


Accuracy filling, balanced action, low buzz.

1. Automatically finished overall process as tube supply, photoelectron register, inert gases filling (optional), material filling and sealing, batch number printing, finished products output.

2. Adjust position outlay and position numbers video picture, quickly and accurately adjustment ( suitable for varies specification and varies product producing )

3. Mechanical, photoelectron, electric, pheumatic intergrative controlling, reaches no tube no filling function; warning if tube error positioned or pressure too low, automatic stop machine if open the protective door.

Technical Parameters:


Filling volume5-250ml(tube)
Filling accuracy≤±1%
Capacity1800-2400(tubes/h Adjustable)

Tube diameter

10-50mm
Tube length210mm (Max. Length)
Hopper volume40 L
Power380V/220V(Optional)
Air pressure0.5-0.7MPa
Equipped motor1.1 KW
Hot air3.0KW
Dimension (L×W×H):1900×1000×1950mm
Weight: (Approx)850kgs

Quick Details


Type: Filling Machine
Condition: New
Application: Food, Beverage, Medical, Machinery & Hardware
Packaging Type: Bottles, Plastic tube
Packaging Material: Plastic
Automatic Grade: Automatic
Driven Type: Pneumatic
Voltage: 220V 50HZ
Power: 1KW
Place of Origin:Shanghai, China (Mainland)
Brand Name: Npack automatic ultrasonic plastic tube filling sealing machine
Model Number: NP.F-50 automatic ultrasonic plastic tube filling sealing machine
Dimension(L*W*H): 1600mm*1100mm*1590mm
Weight: 250KG Soft tube filling and sealing machine
Certification:ISO9001 GMP
After-sales Service Provided:Engineers available to service machinery overseas
Model: NP.F-50 automatic ultrasonic plastic tube filling sealing machine
Material: Plastic tube , Laminated tube , Aluminum Tube
Function: Filling the toothpaste and cosme
