Powder Filling Machine

Application: This machine is suitable for packaging fluidity Powdery product like milk powder, albumen powder, solid drink, white sugar, dextrose, coffee powder, rice powder, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff etc in bag,can,bottle package. Stainless steel design, in line with GMP standard, It can do measuring and filling work. Characteristic 1, With mechanical, electrical, optical, instrument in whole one, single-chip control, with functions of automatic quantitative, automatic filling, automatic adjustment of measurement errors and so on 2, Speed quickily: use The spiral blanking, the light-control technology 3, High precision: use The stepper motor and electronic weighing technology. 4.5-5000g of…

Machine List Screw feeder Auger Filler Vertical Form Fill Seal Machine (Bag width 50-400 mm) Finished products conveyor Check weigher (OPTION) Metal Detector (OPTION) Collect Table (OPTION) Working Principle 1). Filling products on feed hopper of screw feeder on floor; 2). Products will be lifted on the top of auger for feeding; 3). Auger Filler will automatic weighing according to preset weight; 4). Preset weight products will be filled into VFFS machine for bag sealing; 5). Finished package will be outputed to next equipment (check weigher, collect table, etc). Feature 1). Fully-automatically procedures from material feeding, filling and bag-making, date-printing…

Specifications 1  Powder filler 2 Make weight 3 Composite stepping products feeding system 4 High filling precision 5 Power failure protection. Machine name: LCS Semi-automatic powder filling Machine Introduction of the filling machine This machine can automatically finish weight making, metering and filling and so on. And it applies screw metering system and electronic sensor which controls feedback of weight making system. What is more, it can fill all kinds of containers. And therefore this machine is widely used in the dosing packaging of powders and pulverized products. Main performance features 1. Weak and strong electricity are completely separated so…

Specifications Manual Powder Packing Machine hand-held bag packing packing speed10-55b/m packing food powder,chemical powder,medicine powder The main technical performance This packaging machinery adopts spiral feeding, automatic quantitative filling, with simple structure, convenient operation.This packaging machinery is an economic and practical powder packaging machinery. The main performance advantages 1.Control system----This packaging machinery adopting Mitsubishi PLC control system,random minitrim filling measurement. 2.Control panel----This packaging machinery is equipped with color operation panel,human-machine interface simple,safe and reliable. 3.Workbin design----This packaging machinery adopts automatic detection,automatic stop feeding when the material is full,automatic feeding when the material is insufficient 4.Maintance condition----This packaging machinery accords to the…

1. This machine is suitable for packing small particulates, petty powder, and super-mini-powder. 2. This type of packing machine is automatically controlled by PLC. 3. It has servo motor and touch screen which makes it easy to operate. 4. Conforming to GMP standard. Major characteristics This type of packing machine is automatically controlled by PLC. It runs smoothly. It has touch screen, which makes it easy to operate and the speed, is adjustable. This type of machine is suitable for packing small particulates, petty powder, and super-mini-power. The parts, which come into contact with filling material, are made of stainless…

Specifications Automatic 2 heads powder filling machine Competitive factory price High producing standard Easy operate Low noise Inroduction This Machine adopt auger to measure and fill powder and granular, with high filling speed and filling accuracy. The auger is driven by servo motor. It fits more to the fluidic or low-fluidity materials, like coffee powder, albumen powder, pharmaceuticals, condiment, solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on. Parameter Powder filling machine 1 filling nozzle 2 filling nozzles 4 filling nozzles Packaging Weight 10-3000gram Metering Mode Auger rotation filling Accuracy 10-100gr ≤±1%/ 100- 500g ≤±0.8%/ 500-3000gr…

NP-1A-50 Manual Powder Filling Machine This type can do dosing and filling work. Due to the special professional design, so it is suitable to the fluidic or low-fluidity materials, like coffee powder, wheat flour, condiment, solid drink, veterinary drugs, dextrose, pharmaceuticals, powder additive, talcum powder, agriculture pesticide, dyestuff, and so on. Servo motor drive screw. Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material. Save the parameter of different filling weight for different materials. To save 10 sets at most Replacing the auger parts, it is suitable for material…

NP-PFC new automatic coffee powder filling machine NP-PFC Powder Automatic Filling And Capping Machine is our main product, with very high precision. Bottle or can can be conveyed along conveyor to the powder filling machine, then the sensor will detect the bottle, the filling head will start the powder filling into bottles or cans. No bottle no filling. Characteristics 1.highly economical 2.highly filling precision, filling precision can be 1%,while the national standard is 2% 3.Plc control system 4.computer tracing system 5.compact structure,easy to operate 6.volume: customized 7.capacity:customized(can make multi-head filling) Technical Parameter Model NP-PFC Max. capacity 30-60 Bottles/min Range of Filling and Metering 0.5-20g Voltage 380v 50-60 HZ  Three-phase…

NP-PFC automatic syrup powder filling machine NP-PFC Powder Automatic Filling And Capping Machine is our main product, with very high precision. Bottle or can can be conveyed along conveyor to the powder filling machine, then the sensor will detect the bottle, the filling head will start the powder filling into bottles or cans. No bottle no filling. Characteristics 1.highly economical 2.highly filling precision, filling precision can be 1%,while the national standard is 2% 3.Plc control system 4.computer tracing system 5.compact structure,easy to operate 6.volume: customized 7.capacity:customized(can make multi-head filling) Technical Parameter Model NP-PFC Max. capacity 30-60 Bottles/min Range of Filling and Metering 0.5-20g Voltage 380v 50-60 HZ  Three-phase Power…

NP-1A-50 semi-automatic powder filler dry powder filling machine This type can do dosing and filling work. Due to the special professional design, so it is suitable to the fluidic or low-fluidity materials, like coffee powder, wheat flour, condiment, solid drink, veterinary drugs, dextrose, pharmaceuticals, powder additive, talcum powder, agriculture pesticide, dyestuff, and so on. Servo motor drive screw. Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material. Save the parameter of different filling weight for different materials. To save 10 sets at most Replacing the auger parts, it is…

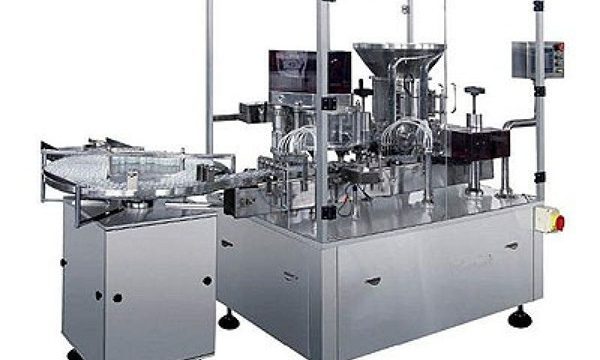

Brief introduction: NPACK-kfs2-b type powder filling machine is a kind of screw type sterile powder filling machine our company has newly developed. It adopts two track, cylinder positioning,2 head screw filling and 2 roller stoppering. The servo motor controls the filling auger precisely. Production capacity: 7Ml vial filling dosage 1g 160~120 bts/min Working principle: This machine consists of turn table, conveyor, twin track, cylinder positioning device, filling head, 2 rollers stoppering device and bottle outlet track. The filling auger is controlled by the servo motor precisely. It use turntable and chain plate conveyor to transfer the bottles, cylinder to position…

Automatic Dry Chemical Powder Filling Machine for Small Bottle and Pet Bottle Automatic Dry Chemical Powder Filling Capping Machine Automatic Dry Chemical Powder Filling Capping Machine for Small Bottle Automatic Dry Chemical Powder Filling Capping Machine for Pet Bottle The Automatic Powder Bottle / Tin / Can Filling Line including: Unscrambler Bottles Machine → Automatic Feeder → Single Head Powder Filling Machine → Capping Machine(Sealing Gland) → Labeling Machine → Spurt the Code Machine → Chain Plate Conveyor → Loading Platform. The production line composed of stainless steel, in addition to the remark material. All machine construction are in accordance…

Powder filling machineis specially used for feeding material into powder filling machine; it is widely used in food, chemical industry, plastic packing and other industries. The height is subject to space of workshop. It can move freely, high speed, and reliable. 1. Bottle feeding machine: This automatic ordering machine adopts one motor to drive working table-board rotate, so as to deed bottle into conveyor. It is mainly suitable for cans, round or square bottle, is corollary equipment of automatic product ling in common usage, to satisfying many kinds of bottle, if adjust, you need only adjust the position and height…
