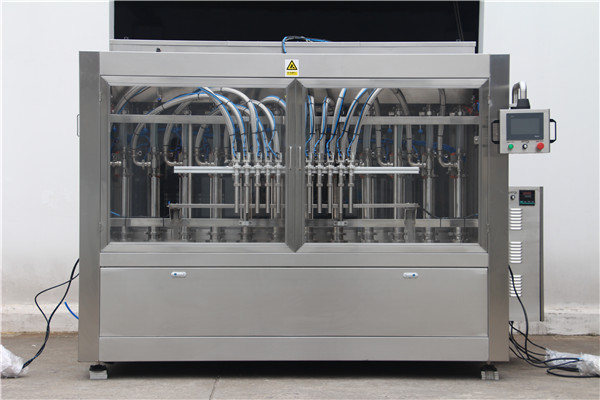

High Volume Automatic Bottle Shampoo Filling Machine

The NP-VF automatic shampoo filling machine is an ideal and flexible shampoo filler capable of filling accurately and rapidly thin and viscosity shampoo liquids, such as shampoo, lotion, body lotion,face cream and so on..

The automatic shampoo filler is constructed with a 304 stainless steel frame ,and 316SS contact parts and is capable of supporting from 2 to 16 fill heads to meet users capacity. it adapts with Schneider PLC Controls and touch screen, Danfoss frequency conventer,316SS contact parts, stainless steel and anodized aluminum construction, plus many more features come standard.

IT adds efficiency to any production line used in the cosmetic, food industry, specialty chemical, pharmaceutical, and personal care products.

Features of automatic shampoo filling machine


304 Stainless steel construction and the liquid contact parts are 316L stainless steel

Schneider PLC and touch screen control

Adapt Servo motor Driven, one servo motor drive one piston for option, high speed and high accuracy.

Accurate filling volume, within ±0.5-0.8%

No bottle, no filling, automatic warning on errors

The filling blocked nozzles are anti drops, silk, and auto cut viscous liquid

Easy to maintaining, it no need special tools and skills.

Diving nozzles for bottom up filling of foaming products.

Bottle mouth can be located if need

Applications


From thin liquid to viscosity liquid

Technical parameters


1Speed20-100bottles/min
2No. of filling nozzles2-16filling nozzles
3Filling range100-1000ml,1000-5000ml
4Measurement precision±1%
5Working power220VAC 50/60hz
6Air pressure4~6㎏/㎝²
7Air consumption1m³/min
8Power rate0.8kw
9Servo motor2KW
10Net weight450KG

The Difference between pneumatic drive and servo motor driven


No.pneumatic driveservo motor driven
1Use pneumatic air cylinder to drive the pistonUse the servo motor to drive the piston
2Adjust the filling volume by hand rotary a general screwAdjust the filling volume automatically, only need to put the filling volume into the touch

screen

3Accuracy +1% for 100gAccuracy+0.8% for 100g

Component List


Component List
PLCSchneider
Touch screenSchneider
Frequency converterdanfoss
Servo motorSchneider
Speed reducerGOLDGUN, shanghai
Air switchSchneider
Nozzles air cylinderairtac

Free Spare parts list for one year
Seals 10pcs 5USD/pcs
O Ring 10 pcs 8USD/pcs
Motor belt 1 pcs 20USD/pcs
