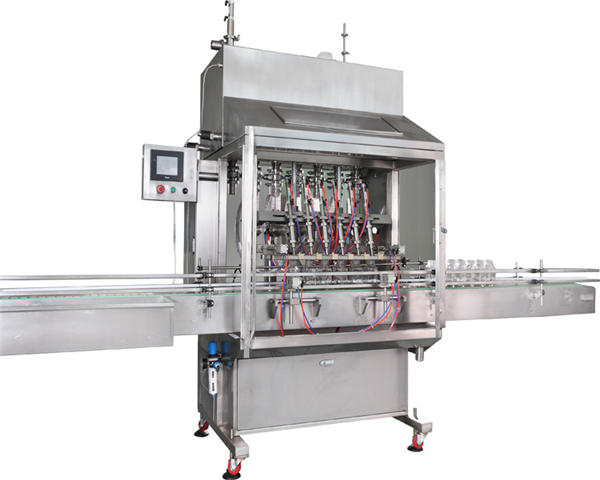

Professional Manufacturer Automatic Blueberry Jam Filling Machine

This series fiiling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action. Use servo mtor control volume more accurate, and filling speed can variable, a slow speed can be applied when close the target filling volume to prevent liquid spill out.

bottle shape: round &flat bottles

liquid: viscous liquid such as shampoo, dishwasher, oil, chemicals, detergent and so on ... capacity :1000-6000BPH

Technical parameter


1Speed4000-5000bottles/h
2Filling range50~1000ml
3Measurement precision±1%
4Working power220VAC
5Air pressure6~7KG/CM²
6Air consumpation1m³/min
7Power rate0.8kw
8Other devices power rate7.5kw(air compressor)
9Net weight2520KG
10Counter size2400X1500X2500mm

Quick Details


Type: Filling Machine
Condition: New
Application: Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type: Barrel, Bottles, Cans, Cartons, Case
Packaging Material: Glass, Metal, Plastic
Automatic Grade: Automatic
Driven Type: Electric
Voltage: AC380V 50/60HZ
Power: 2.5KW
Place of Origin: Shanghai, China (Mainland)
Brand Name: NPACK
Dimension(L*W*H): 2400mm*1300mm*2150mm
Weight: 1200KG
Certification: SGS CE ISO
After-sales Service Provided: Engineers available to service machinery overseas
Machine body material: Stainless steel 304
Contact material: Stainless steel 316
