Sachet Sauce Filling Machine

Home / Filling Machines / Sachet Sauce Filling Machine

Sachet Sauce Filling Machine

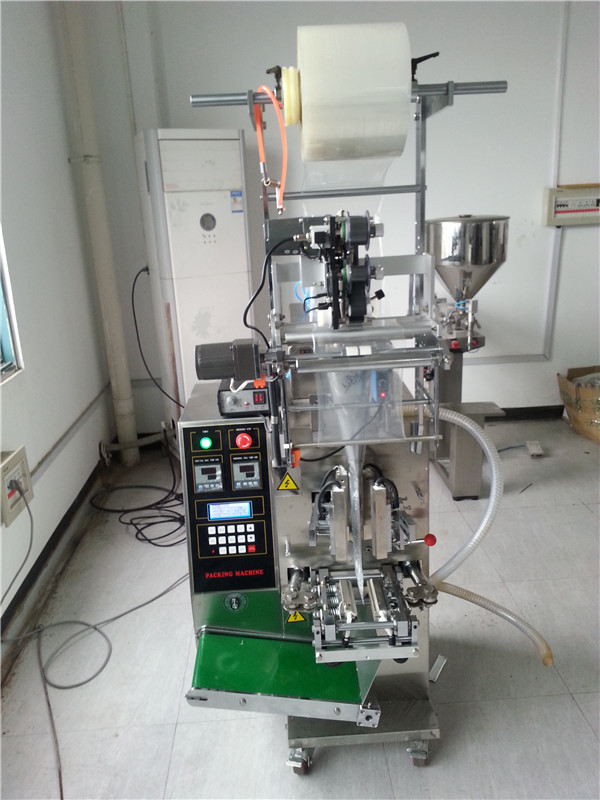

NP-LSP sachet sauce filling machine, sauce sachet forming, filling and sealing machine is suitable for packaging of soft pouch liquid ,viscosity liquid, such as juice, food seasoning, shampoo, milk, ,sauce,medicine liquid..etc. Packing material include several kinds of heat seal lamination, such as PET/plated AL/PE, PET/PE, NYLON etc.

Features


1. All stainless steel cover meets to GMP standard.
2. The machine is suitable for hot filling and assembling attemperator depend on
customer’s requirement.
3. Automatic adjustment of pouch size and filling range.
4. Automatic self-support lubricating system, the machine can work 24 hours.
5. The operation facility is controlled by American intel computer, all function is
displayed with digital screen.
6. Minimum sealing temperature variation employs PID temperature, the tolerance
is controlled by ±2%.
7. The sauce sachet filling machine can be equipped with a product stirrer and heated jacket for high temperature product packaging.
8. The filling system is specially design for filling sauce
9.customer also can choose the horizontal sachet sauce forming , filling and sealing machine accordingly
For details, please contact us freely.

Technical Specification


Sealing Typefour side sealing
Method of MeasurementPiston type filling system
Range of Measurement5-30g
Packing Speed30 to 50(bag/min)



Bag Size(W):30-150mm

(L):30-170mm

Bag size can be lengthened according to customer requirement

Total Power1600W
Voltage380 v / 60 hz / 3 phase
Machine Weight250kg
Machine Size1010x730x1700mm

two year free wearing parts and spare parts

ItemPartsQuantity
1Electrical heated tube4pcs
2HEX SOCKET and spanner1set
3screwdriver             1pcs
4instruction book for machine1set
5Brush1pc
6Belt1pc
