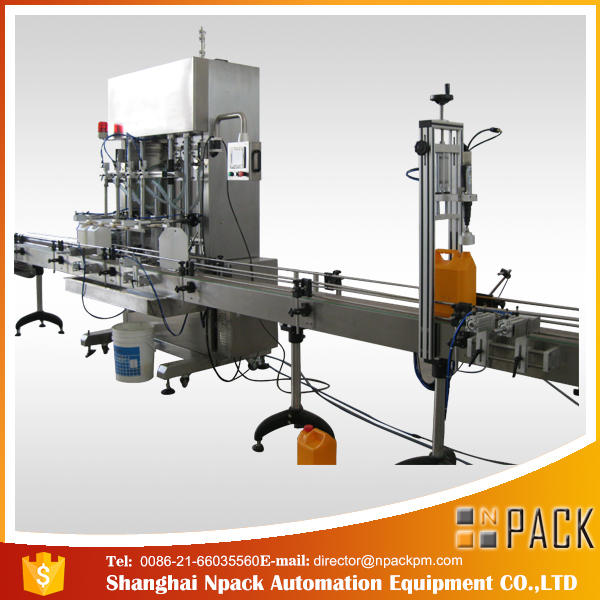

This is a high-tech filling equipment integrating on the PLC microcomputer programmable control, and photo electricity transduction pneumatic action. The machine is especially suitable for foodstuff. For example: white spirit, soy sauce, vinegar, seasoning, vegetable oil, syrup, mineral water, edible liquid as well as chemical liquid. It has accurate filling measurement; there is not bubble and drop. It suits for the filling of all kinds of bottle (including irregular bottle)
Major characteristics
This gravity time filling machine specially designed for foamy product, such as: glass cleaner ,liquid soap and so on.
(1)PLC controlled, friendly touch screen control.
(2) Famous brand electrical and pneumatic components used to guarantee machines quality and long life service time.
(3) diving function for dripping can be special designed for foamy product.
(4) All wetted parts are made of SS316.
(5)Not only whole filling heads can be adjusted, but each filling head can be fine-adjusted respectively.
(6)Bottle inlet counting, quantitative filling, bottle outlet counting, and serious motions can be done automatically.
(7)Simple structure, easy operation, Low noise, reliable running, accurate filling.
Technical parameter
| NO. | Items | Performance |
| 01 | Power Supply | AC 220V ;50Hz or 380V; 50Hz |
| 02 | Power | 1.5Kw |
| 02 | Suitable containers | Container mouth diameter: ≥Φ18mm |
| Container height:100mm-300mm | ||
| Container diameter:30mm-100mm | ||
| 03 | Number of filling nozzles | 12 (may customized) |
| 04 | Productivity | ≤6000bottles/hour (Take 100ml water as test) ≤2500bottles/hour (Take 1000ml water as test) |
| 05 | Pneumatic (air -operated) source | 0.33-0.50 Mpa clean and Stable compressed air |
| 06 | Material density | 0.6-1.3 |
| 07 | Machine weight | 480Kg |
| 08 | Dimension | 2000mm×1100mm×2500mm |
Filling range: 100ml -1000ml
1L-5L
bottle shape: round & flat
Capacity
at basic of 1L ,there are different kinds of capacity of the machines
less than 2000BPH
less than 4000BPH
less than 6000BPH
Quick Details
Type: Filling Machine
Condition: New
Application: Chemical, Commodity, Food, Machinery & Hardware, Medical, Other
Packaging Type: Bottles, Cans, Other
Packaging Material: Glass, Plastic, Other
Automatic Grade: Automatic
Driven Type: Pneumatic
Voltage: AC220V 50/60HZ
Power: 1.5KW
Place of Origin: Shanghai, China (Mainland)
Dimension(L*W*H): 2100MM*1100MM*2300MM
Weight: 750KG
Certification: CE ISO SGS
After-sales Service Provided: Engineers available to service machinery overseas
Machine body material: Stainless steel 304
Liquid contact part: Stainless steel 316
