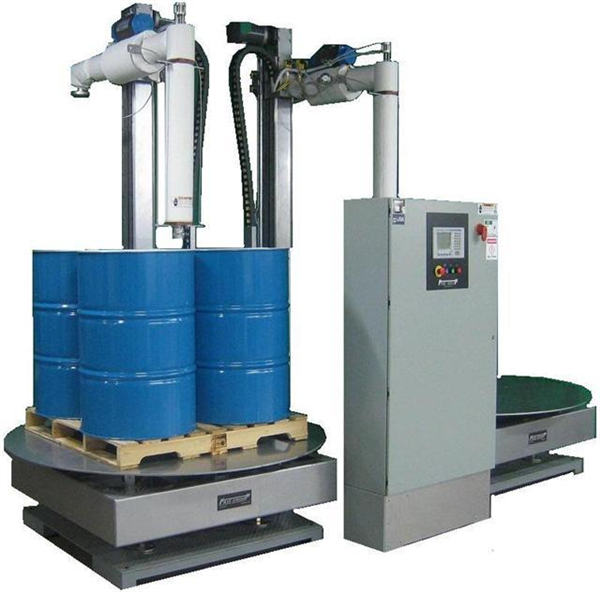

1. Two filling heads with separate meter and weight system and therefore two heads can work together or singly;
2. Weighing platform roller diameter 60mm, width 0.6M and length 1.78M;
3. Automatic pneumatic lifting system;
4. A capping system is available which is from Flange 2;
5. Machine outer cover is made of stainless steel.
1. The metering and weighting platform if from Mettler Toledo of US and the metering system can realize computer monitor terminal. And the meter model is Panther 2000 with serial port PS422;
2. Pneumatic components are US electromagnetic directional valve and France PLC control.
Main technical parameter
Production capacity: 100drum/hour (for 200kg capacity or so)
Oil-taking pressure: 0.3~0.4MPa
Filling precision: ≤±0.2%
Air pressure: 0.6~0.7MPa
It can realize net weight and filing volume can be set easily;
This machine can receive daily filled drum quantity and each drum weight and especially the fast-and-slow two filling volume;
Even computer can collect current running state of the machine;
The meter can realize lock code.
Type: Filling Machine
Application: All kinds of liquid such as petrol, oil and water and so on
Packaging Type: drum
Packaging Material: Wood
Automatic Grade: Automatic
Driven Type: Pneumatic and electric
Place of Origin: Shanghai, China (Mainland)
Brand Name: NAPCK
