Supplier Automatic Iron Can Filling Machine

Home / Filling Machines / Can Filling Machine / Supplier Automatic Iron Can Filling Machine

Full Automatic 10 Heads Cosmetic Cream Jam Filling Machine

Product Introduction

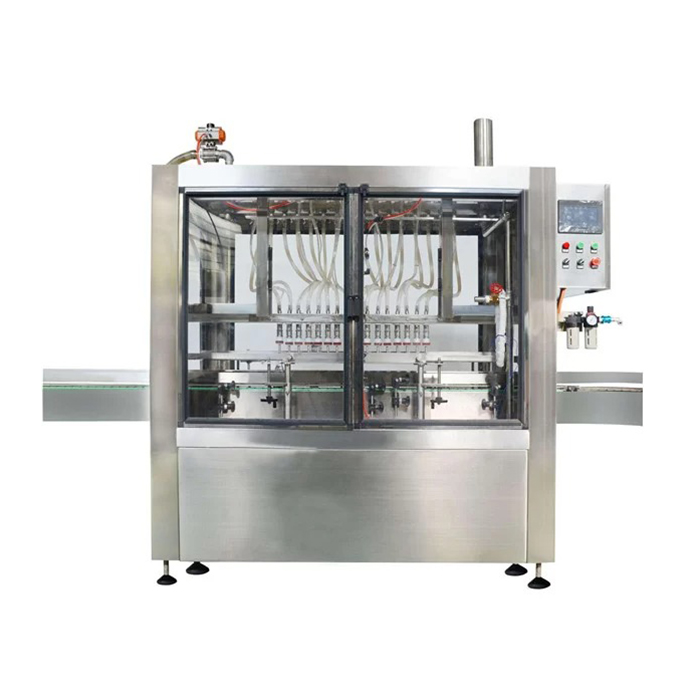

NP-VF supplier automatic iron can filling machine is extremely flexible filler, especial for liquid from thin viscous to high density , such as water, oil, lotion, cream, Jam, sauce, honey, ketchup and so on. It is mostly used in the chemicals, foodstuff and pharmaceuticals industry.

The spare parts are proceeding by CNC machines with imported high quality stainless steel, all the main components are imported from Japan, German, Italy and America. Full automatic ,controlled by PLC, operate by touch screen, easy operate and almost no need maintaining.

The supplier automatic iron can filling machine is manufactured with a 304 stainless steel frame and is capable of supporting 2 to 16 filling nozzles PLC Controls, touch screen.

Name
supplier automatic iron can filling machine
Model
NP-VF
Filling Nozzles
2-12 nozzles, or customized
Power
2.5KW
Applied bottle range
30-100ml, 100-1000ml, 900ml-5000ml
Filling Accuracy
±0.1%
Filling speed
800-4200 bottles/hour , 30b/min per 4 filling nozzles 1L
Dimension
2200*1400*2300mm
Weight
400kg
Power supply
  220V Single phase 50HZ 380V Three phase 50HZ



Quick Details


Type: Filling Machine
Condition: New
Application: Beverage, Chemical, Commodity, Food, Medical
Packaging Type: Barrel, Bottles, Cans, Capsule, Cartons, Case, Pouch, Stand-up Pouch
Packaging Material: Plastic, Wood
Automatic Grade: Automatic
Driven Type: Pneumatic
Voltage: 220V/380V
Power: 2.5KW
Place of Origin: Shanghai, China (Mainland)
Brand Name: NPACK
Model Number: NP-VF supplier automatic iron can filling machine
Dimension(L*W*H): 2500*1400*2500mm
Weight: 400KG
Certification: CE ISO
After-sales Service Provided: Engineers available to service machinery overseas
Product name: supplier automatic iron can filling machine
Processing Types: iron can filling machine
Warranty: 12 Months
Material: Stainless Steel
Bottle type: Plastic Bottle,Glass Bottles
Capacity: 800-4000bph
Control: PLC+ Touch Screen
Filling Volume: 50-5000ML
Packing: Wooden case packing
Filling Precision: 0.1%
